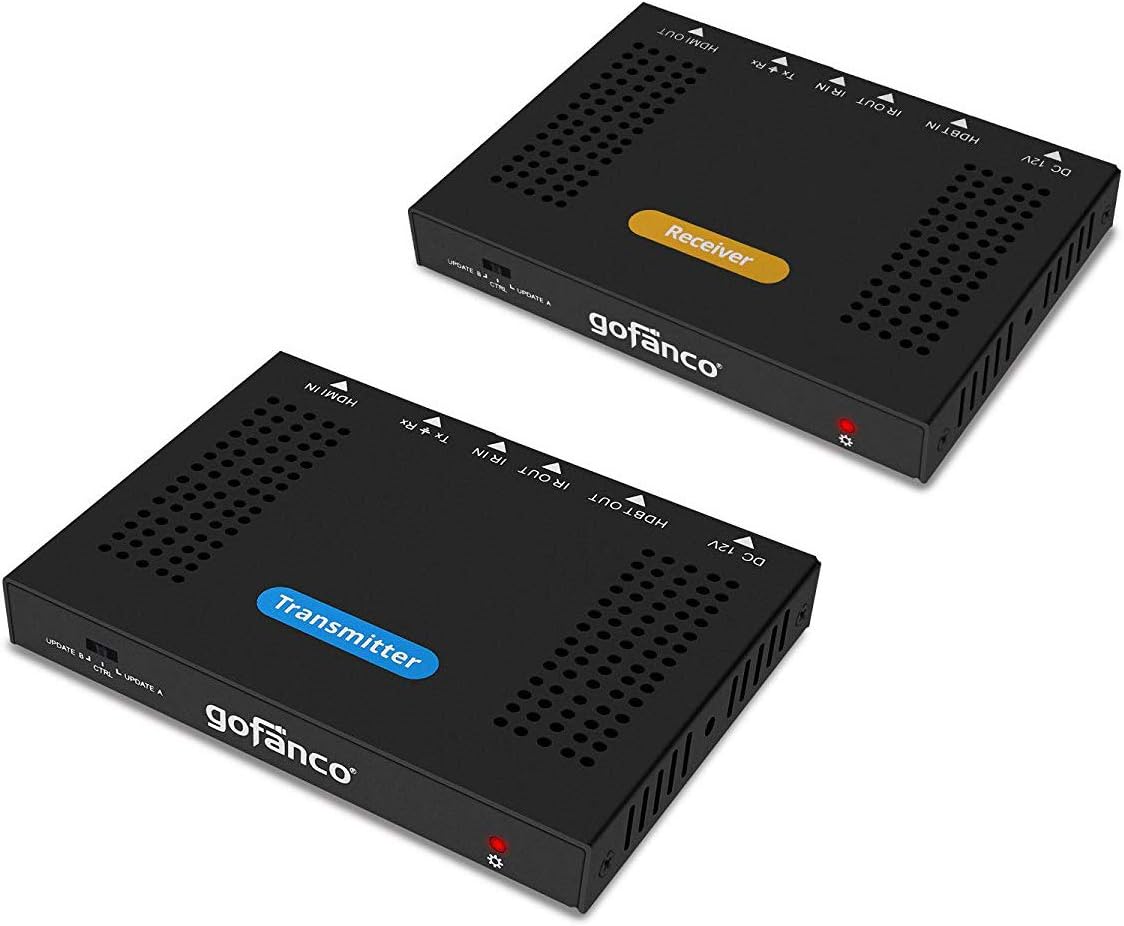

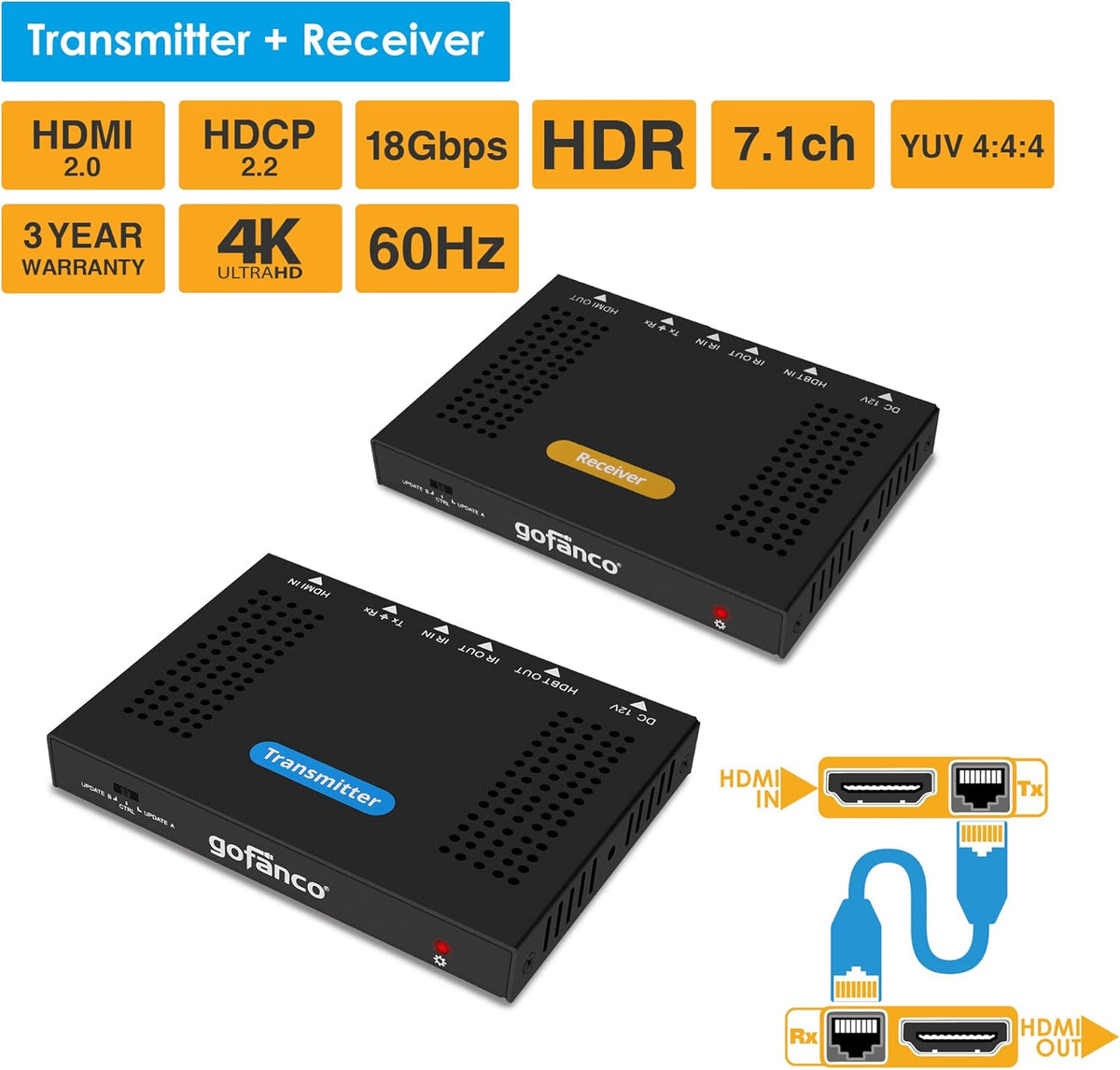

HDBaseT HDMI 2.0 Extender 4K 60Hz 4:4:4 HDR Over CAT5e/CAT6 70m/230ft @1080p & 40m/130ft @UHD 4K/60Hz, Dual IR, RS-232, CEC, PoC, 18Gbps Bandwidth, HDCP 2.2 C87340
Sale price
$24.99
Regular price $101.18
Skip to product information

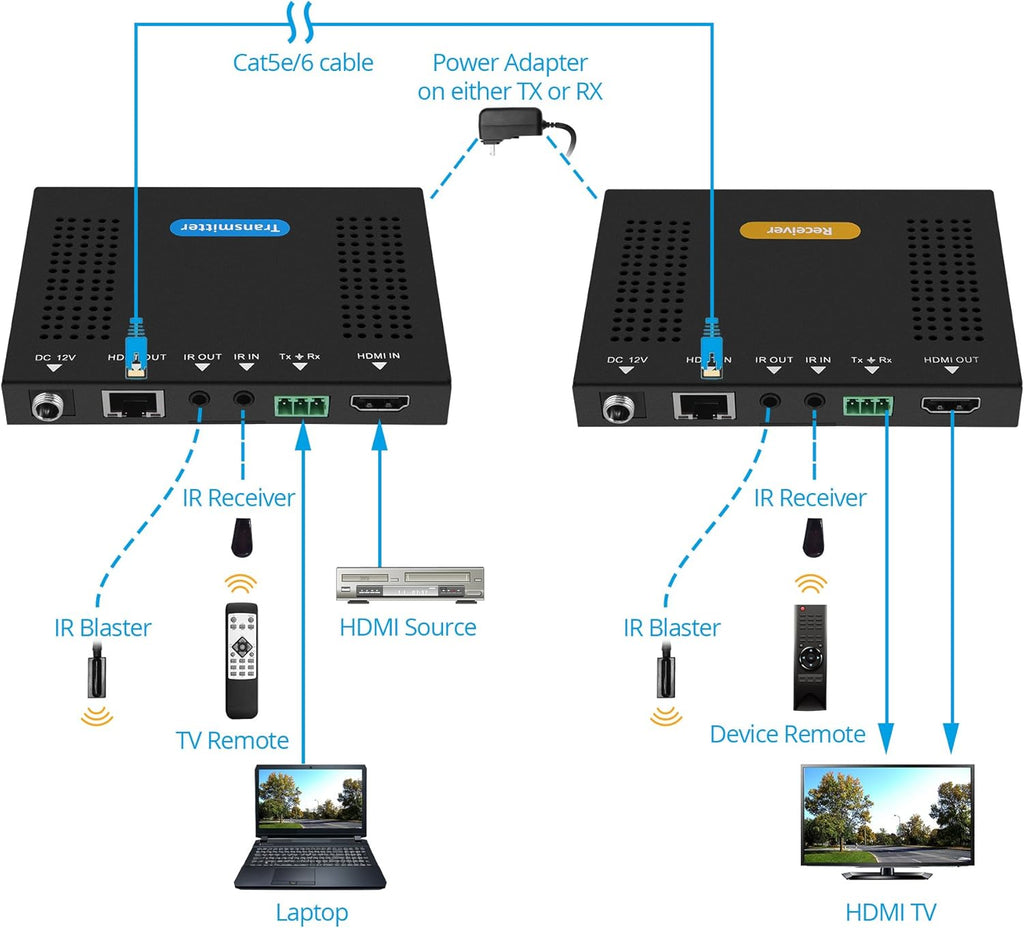

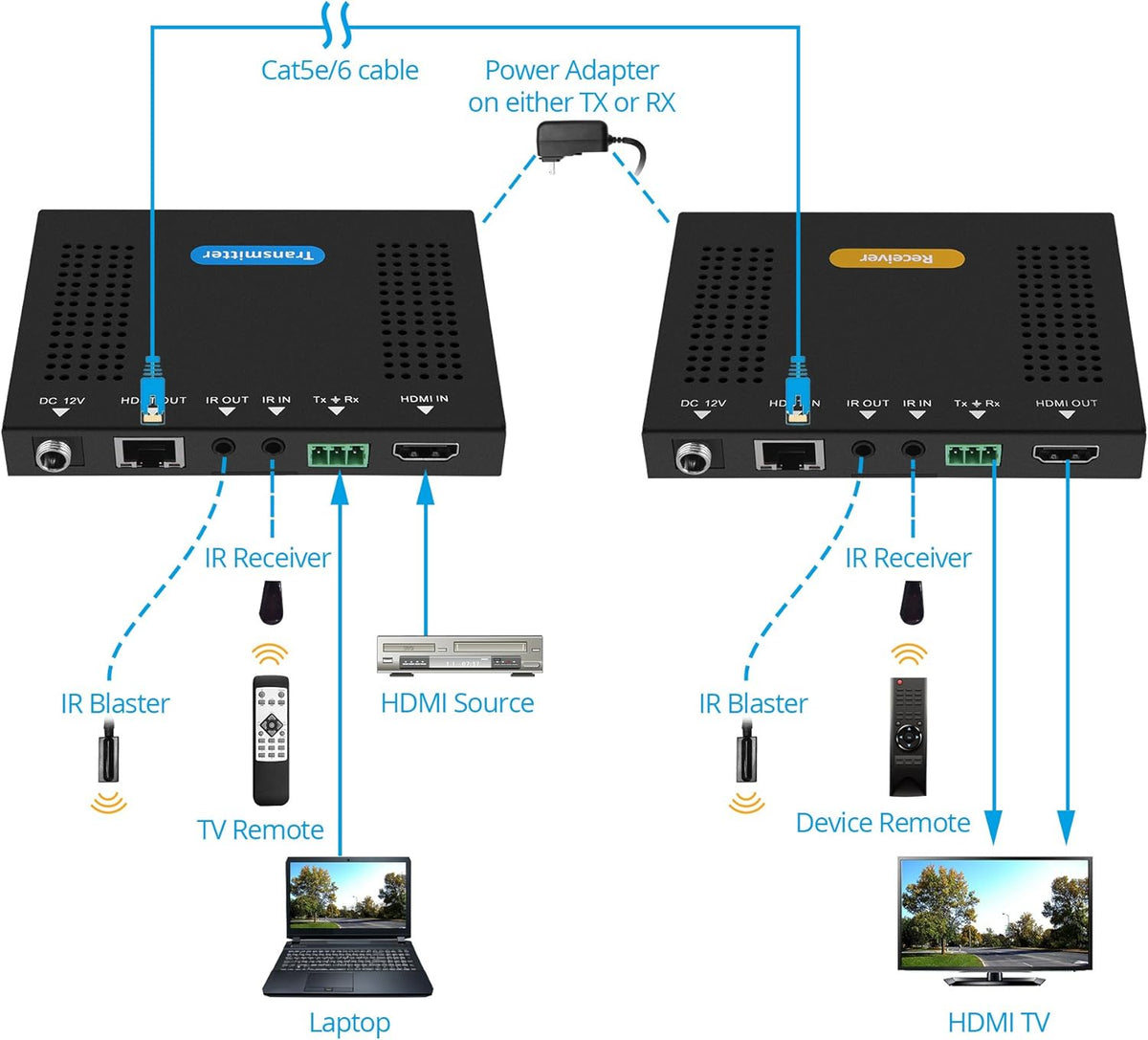

✔ ADVANCED HDbaseT FEATURES - HDMI 2.0, HDCP 2.2, UHD 4K/60Hz YUV 4:4:4, HDR, 18Gbps Bandwidth Bi-directional IR, RS-232 extension, CEC, and Power over Cable (PoC) allows one power adapter to power both the TX & RX units. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats
✔ ULTRA COMPATIBILITY - Wide range of compatibility includes cables boxes, Amazon Fire TV Cube 4K, Apple TV 4K, Roku 4, Xbox One X, PS4 Pro and more. Extend all of your favorite HDMI source's video signal in 4K @60Hz HDR!
✔ TRANSMISSION RANGE – Up to 230ft (70m) @1080p & 130ft (40m) @4K/60Hz. * Note: A good quality CAT5e/6/7 cable is essential in delivering quality content; Use a straight-through Ethernet cable and NOT crossover. We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search CAT6UTP-100(B07PB3R8BK)/CAT6UTP-150(B07P6TDMLH) on Amazon.
✔ COST EFFECTIVE SOLUTION - Excellent solution for those that want to watch high quality video in one room while their source is in another room. Great for watching movies on an outdoor projector or screen on warm summer nights, from your source that is indoors. Used for lecture hall, digital signage, conference rooms, restaurants/bars, and more!
✔ FIVE STAR CUSTOMER SUPPORT: Surface-mountable metal housing (can be hidden behind TV). FCC, CE and RoHS compliant. Our products are backed with a 3-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select 'Ask a Question'.
HDBaseT HDMI 2.0 Extender 4K 60Hz 4:4:4 HDR Over CAT5e/CAT6 70m/230ft @1080p & 40m/130ft @UHD 4K/60Hz, Dual IR, RS-232, CEC, PoC, 18Gbps Bandwidth, HDCP 2.2 C87340
Sale price
$24.99
Regular price $101.18
Shipping calculated at checkout.
✔ ADVANCED HDbaseT FEATURES - HDMI 2.0, HDCP 2.2, UHD 4K/60Hz YUV 4:4:4, HDR, 18Gbps Bandwidth Bi-directional IR, RS-232 extension, CEC, and Power over Cable (PoC) allows one power adapter to power both the TX & RX units. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats
✔ ULTRA COMPATIBILITY - Wide range of compatibility includes cables boxes, Amazon Fire TV Cube 4K, Apple TV 4K, Roku 4, Xbox One X, PS4 Pro and more. Extend all of your favorite HDMI source's video signal in 4K @60Hz HDR!
✔ TRANSMISSION RANGE – Up to 230ft (70m) @1080p & 130ft (40m) @4K/60Hz. * Note: A good quality CAT5e/6/7 cable is essential in delivering quality content; Use a straight-through Ethernet cable and NOT crossover. We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search CAT6UTP-100(B07PB3R8BK)/CAT6UTP-150(B07P6TDMLH) on Amazon.
✔ COST EFFECTIVE SOLUTION - Excellent solution for those that want to watch high quality video in one room while their source is in another room. Great for watching movies on an outdoor projector or screen on warm summer nights, from your source that is indoors. Used for lecture hall, digital signage, conference rooms, restaurants/bars, and more!
✔ FIVE STAR CUSTOMER SUPPORT: Surface-mountable metal housing (can be hidden behind TV). FCC, CE and RoHS compliant. Our products are backed with a 3-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select 'Ask a Question'.
| HDbaseT-Ext | HDbaseT-HDR | HD20Ext | HD20Ext-Aud | HD20Ext-Cas | HDBaseT-HD20 | |
|---|---|---|---|---|---|---|
| Supported Resolution | 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, 1080p @60Hz, 3D | 4K @60Hz (4:2:0 10-bit), 4K @60Hz (YUV 4:4:4 8-bit) 1080p@60Hz, 3D | 4K @60Hz (4:2:0 10-bit), 4K @60Hz (YUV 4:4:4 8-bit) 1080p@60Hz, 3D | 4K @60Hz (4:2:0 10-bit), 4K @60Hz (YUV 4:4:4 8-bit) 1080p@60Hz, 3D | 4K @60Hz (4:2:0 10-bit), 4K @60Hz (YUV 4:4:4 8-bit) 1080p@60Hz, 3D | 4K @60Hz (4:2:0 10-bit), 4K @60Hz (YUV 4:4:4 8-bit) 1080p@60Hz, 3D |
| Transmission Range | 230ft (70m): 1080p 130ft (40m): UHD 4K @60Hz 4:2:0 | 230ft (70m): 1080p 130ft (40m): 4K@60Hz | 230 ft. (70m): 4K@60Hz and 1080p | 328ft (100m): 1080p 230ft (70m): 4K@60Hz | 328ft (100m): 1080p 230ft (70m): 4K@60Hz | 230ft (70m): 1080p 130ft (40m): 4K@60Hz |
| Local HDMI Output on TX (Loopout) | No | No | Yes | Yes | Yes | Yes |
| HDMI | 1.4 | 2.0a | 2.0a | 2.0a | 2.0a | 2.0a |
| HDCP | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| HDR | No | Yes | Yes | Yes | Yes | Yes |
| Bandwidth | 10.2 Gbps | 18 Gbps | 18 Gbps | 18 Gbps | 18 Gbps | 18 Gbps |
| RS-232 | No | Yes | No | No | No | Yes |
| Audio Extractor | No | No | No | Yes (Toslink) | Yes (Toslink) | No |
| Recommended Devices | PC, XBOX One /S, PS3/PS4, Amazon Fire TV Cube/Stick, Apple TV, Roku, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One X, PS4 Pro/PS5, Amazon Fire TV Stick/Cube 4K , Apple TV 4K, Roku 4, Cisco Cable Box, Comcast, Vizio TV, SkyQ, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One X, PS4 Pro/PS5, Amazon Fire TV Stick/Cube 4K , Apple TV 4K, Roku 4, Cisco Cable Box, Comcast, Vizio TV, SkyQ, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One X, PS4 Pro/PS5, Amazon Fire TV Stick/Cube 4K , Apple TV 4K, Roku 4, Cisco Cable Box, Comcast, Vizio TV, SkyQ, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One X, PS4 Pro/PS5, Amazon Fire TV Stick/Cube 4K , Apple TV 4K, Roku 4, Cisco Cable Box, Comcast, Vizio TV, SkyQ, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One X, PS4 Pro/PS5, Amazon Fire TV Stick/Cube 4K , Apple TV 4K, Roku 4, Cisco Cable Box, Comcast, Vizio TV, SkyQ, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! |
